Slitting and cut-to-length lines, built in Foshan.
Coil processing lines for stainless, carbon, galvanized, aluminum and copper coil, configured around the coil you run and the strip or sheet you ship.
- Line types
- 11 types
- Material thickness
- 0.2–16mm
- Coil weight
- up to 25t
- Coil width
- 300–1650mm
- Sheet length
- 500–6000mm

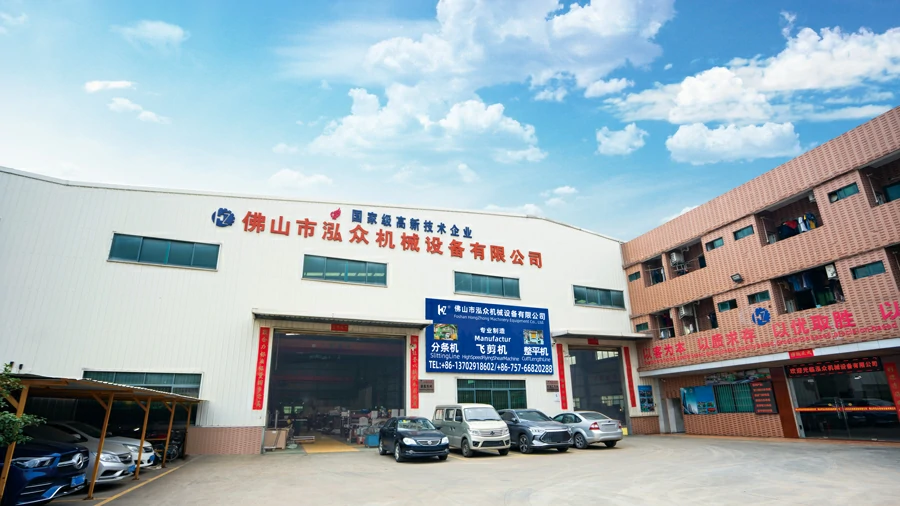

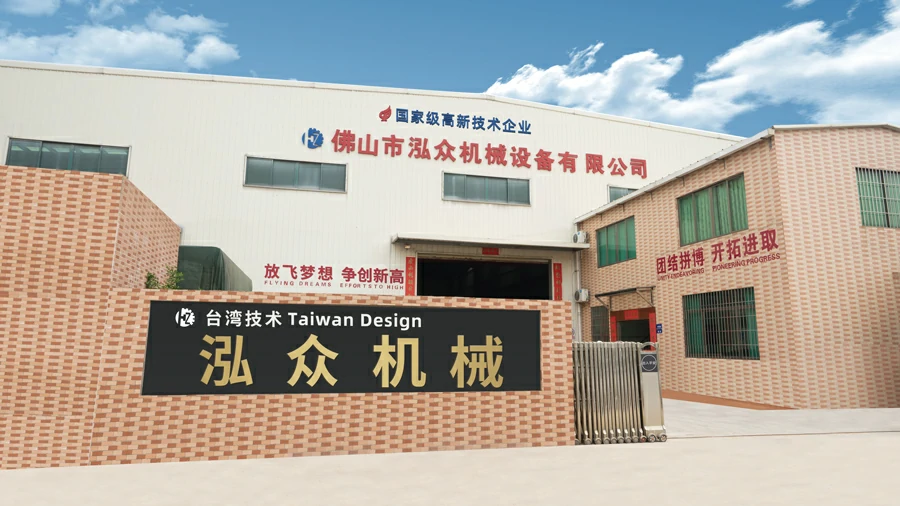

Foshan Hongzhong Machinery designs and builds slitting lines, leveling and cut-to-length lines and flying shears. Each line is engineered around one customer’s coil, built in our own factory and run before it ships.
About the companyEquipment
Three families of lines. Every one is built to your coil width, thickness range and output.

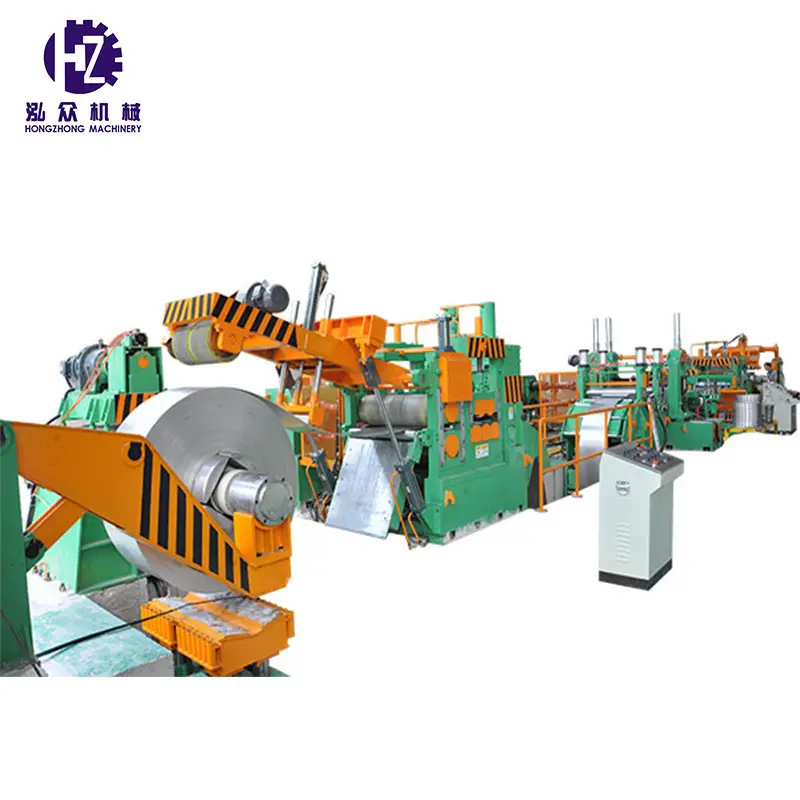

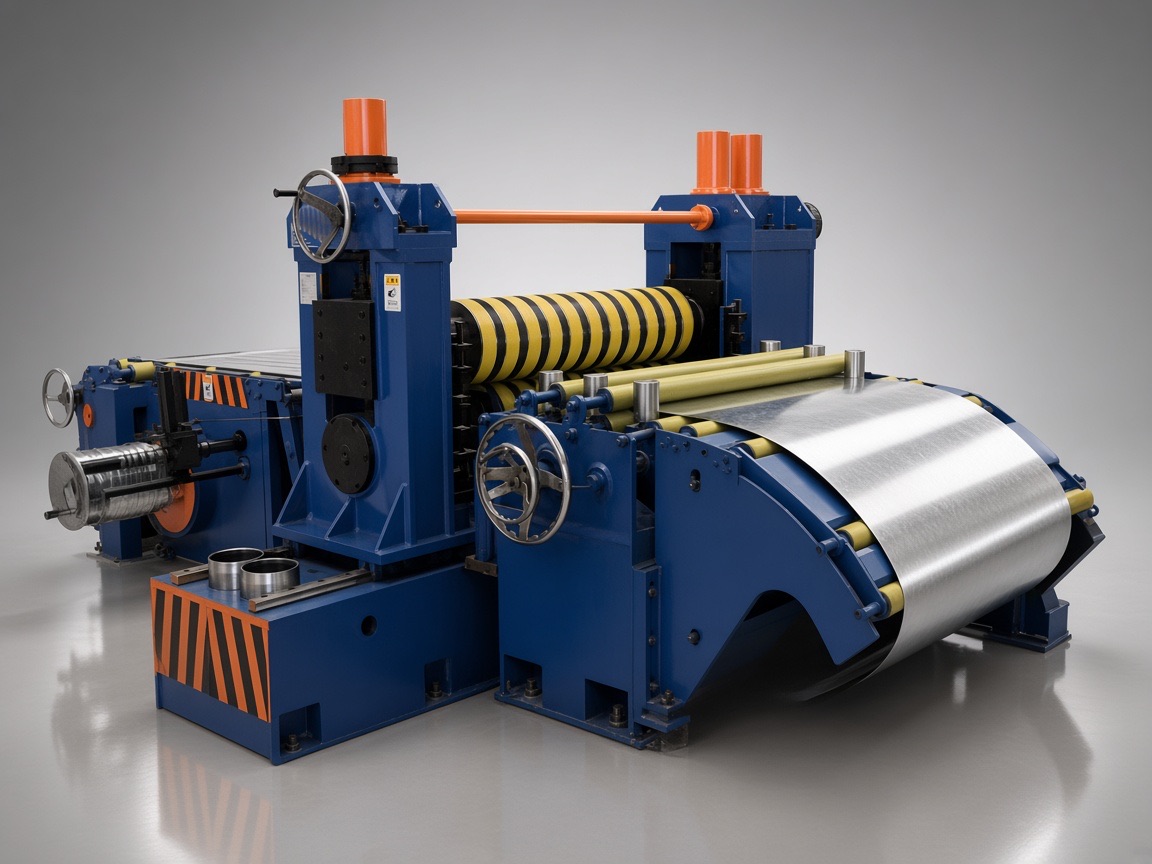

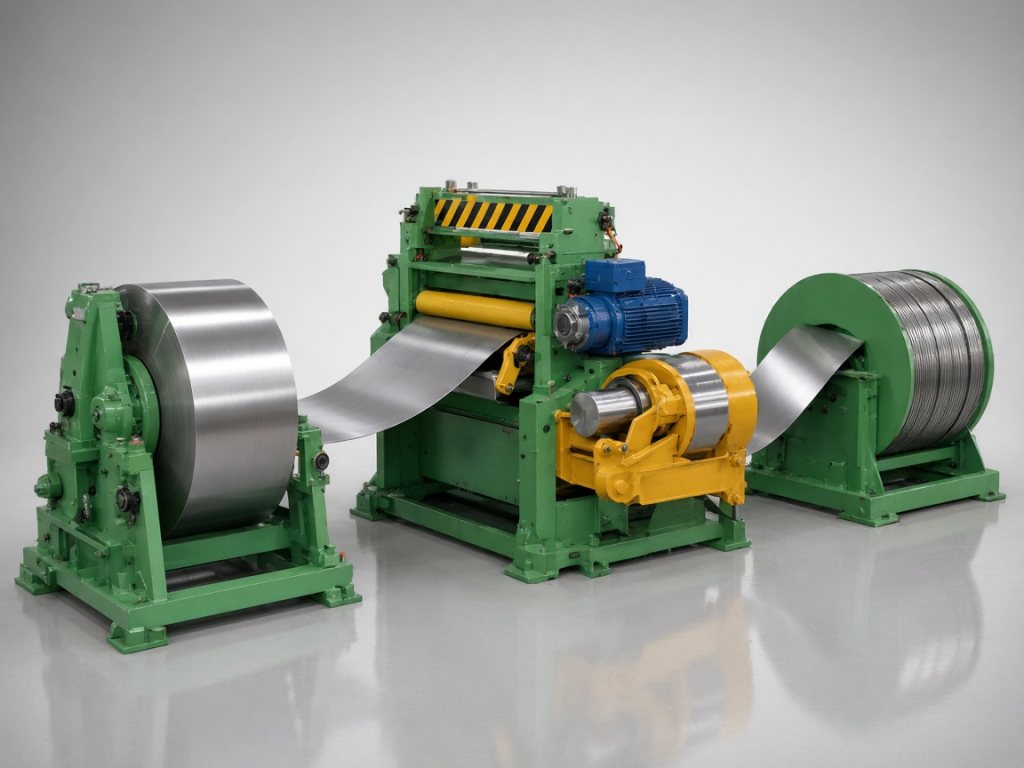

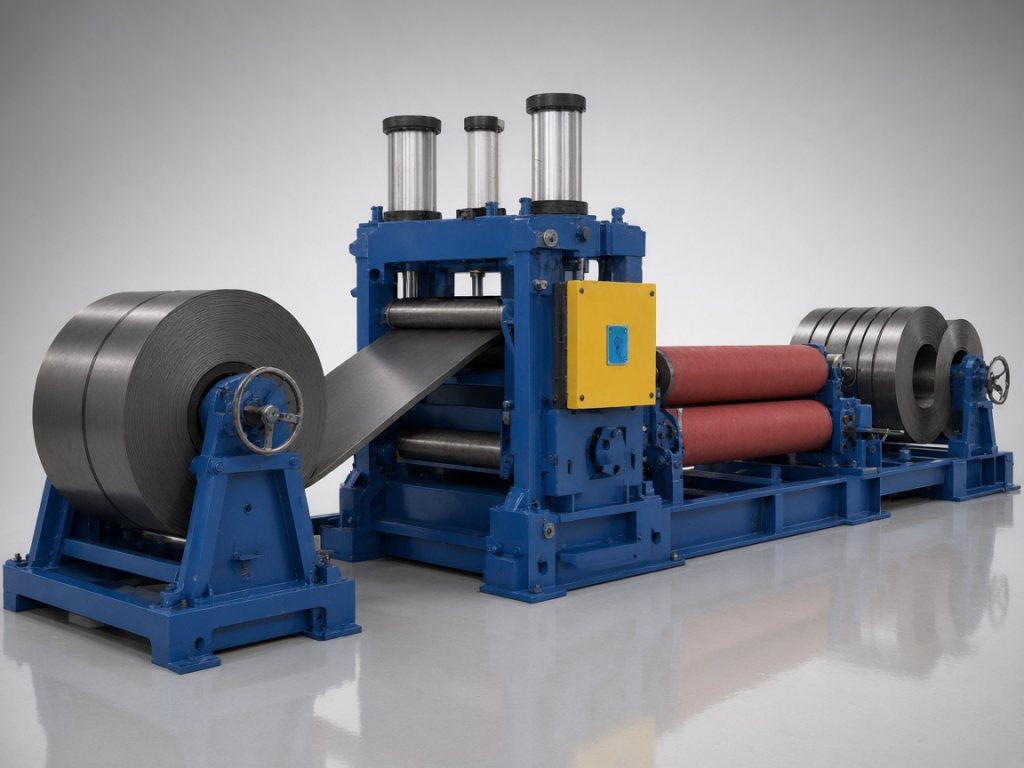

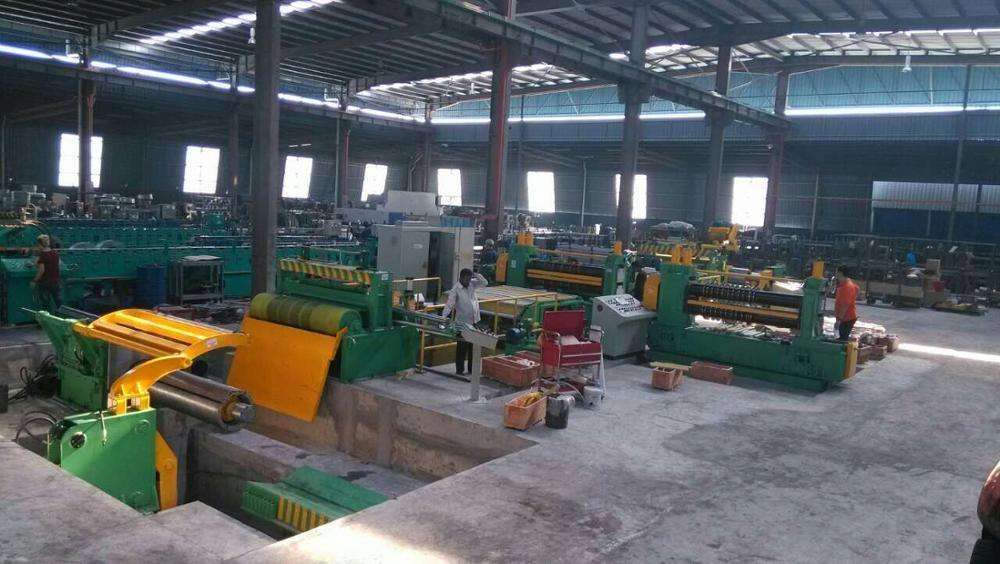

Slitting lines

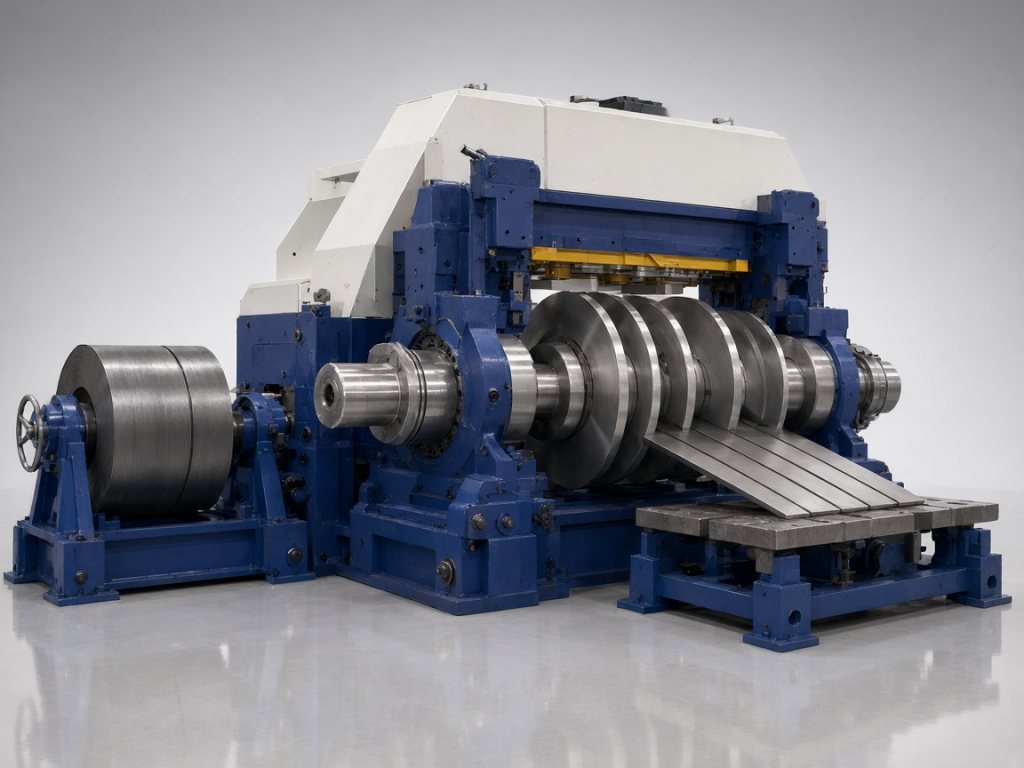

Master coil in, precise strips out. From 0.3 mm light-gauge stainless to 16 mm plate.
6 line types

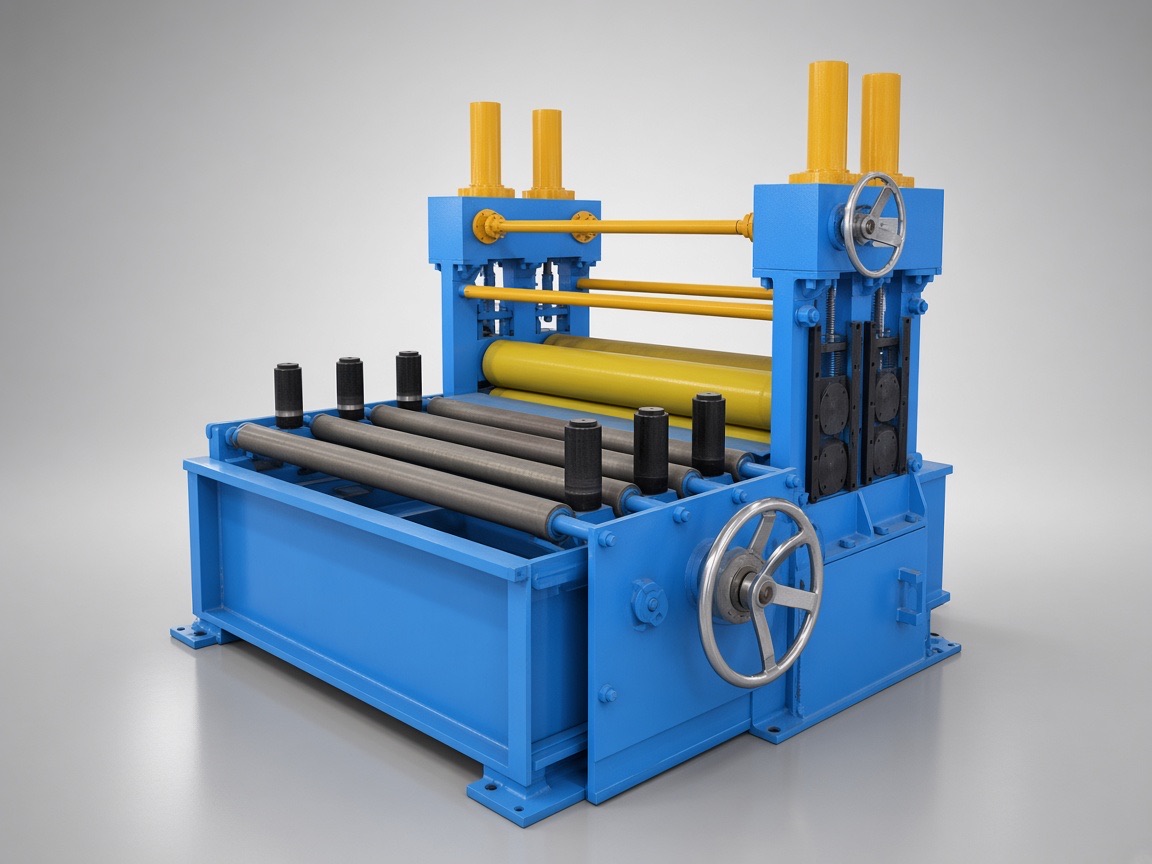

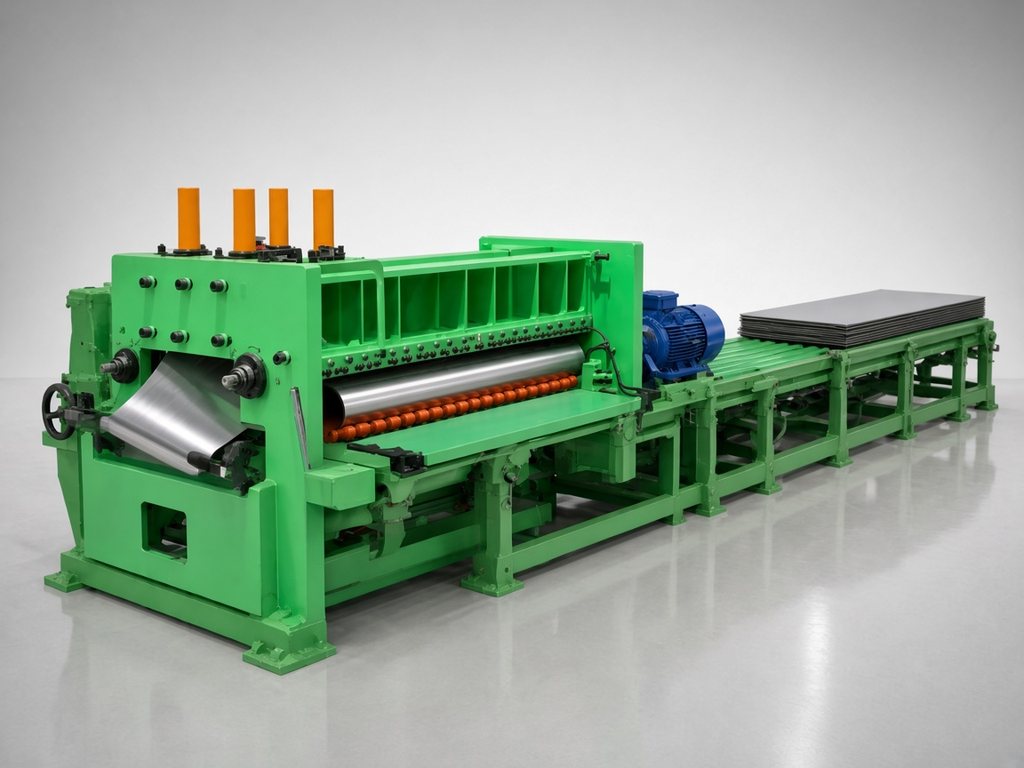

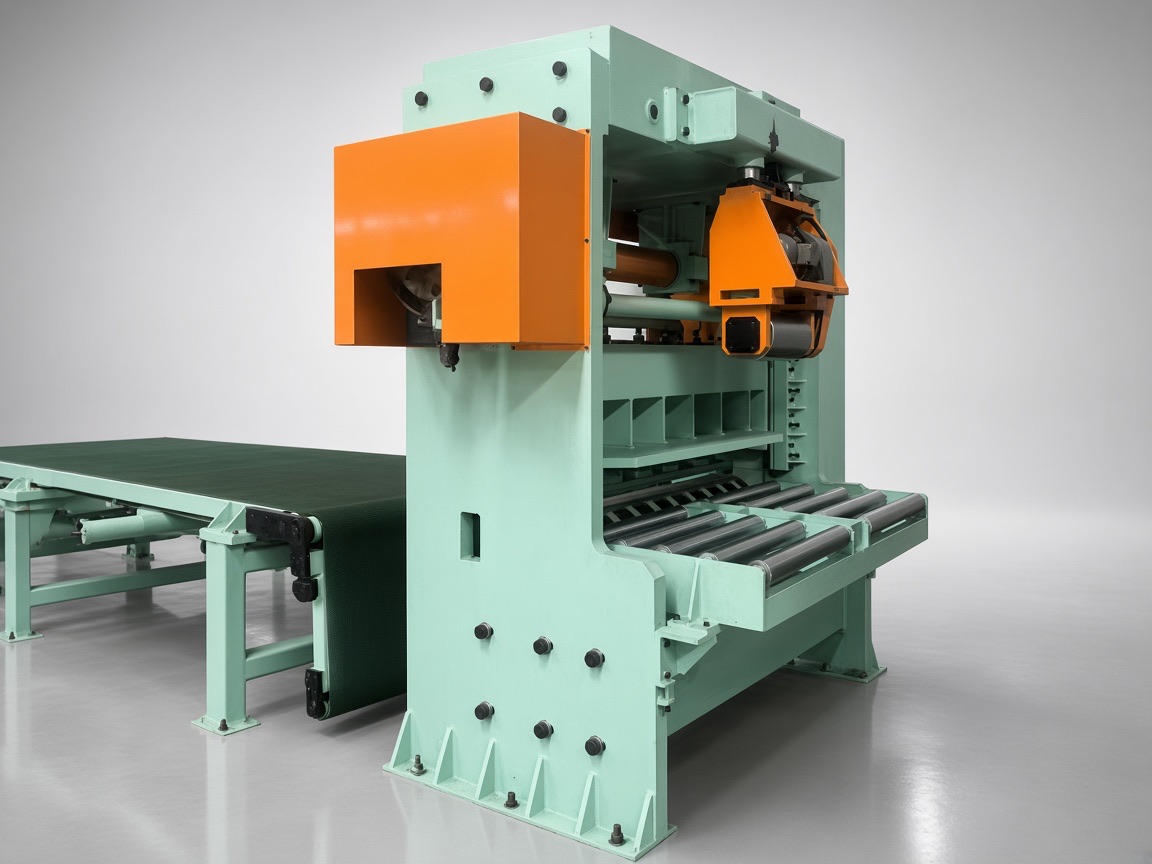

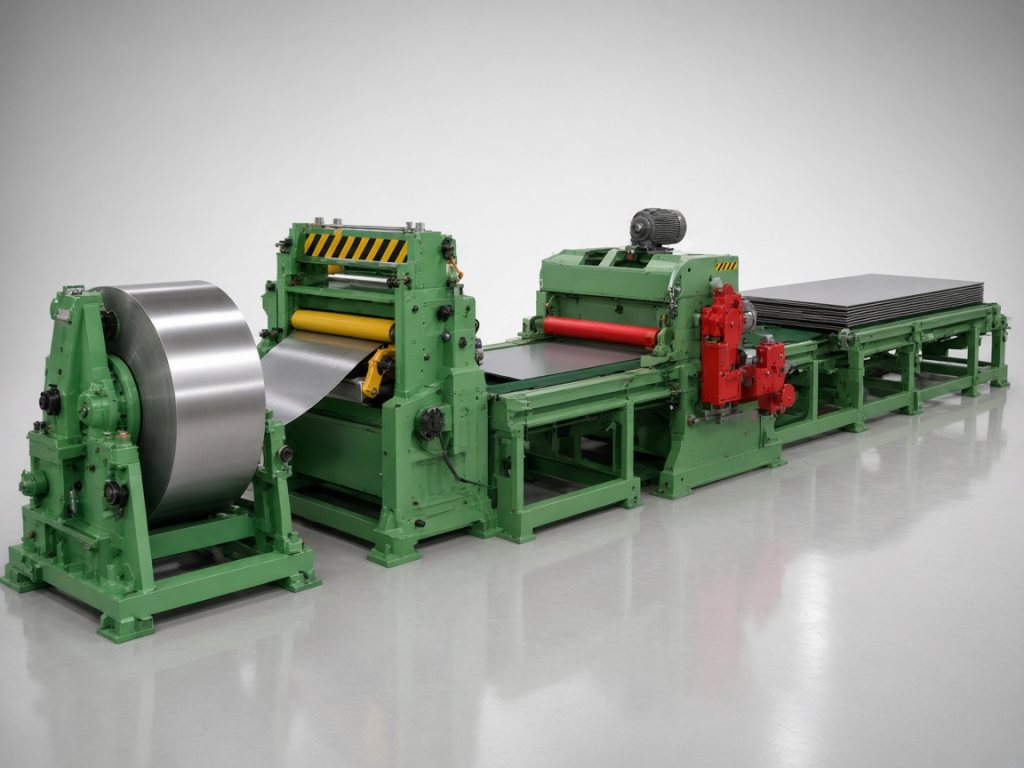

Cut-to-length lines
Level and cut coil into flat sheets from 500 to 6000 mm, with rotary or flying shears.
4 line types

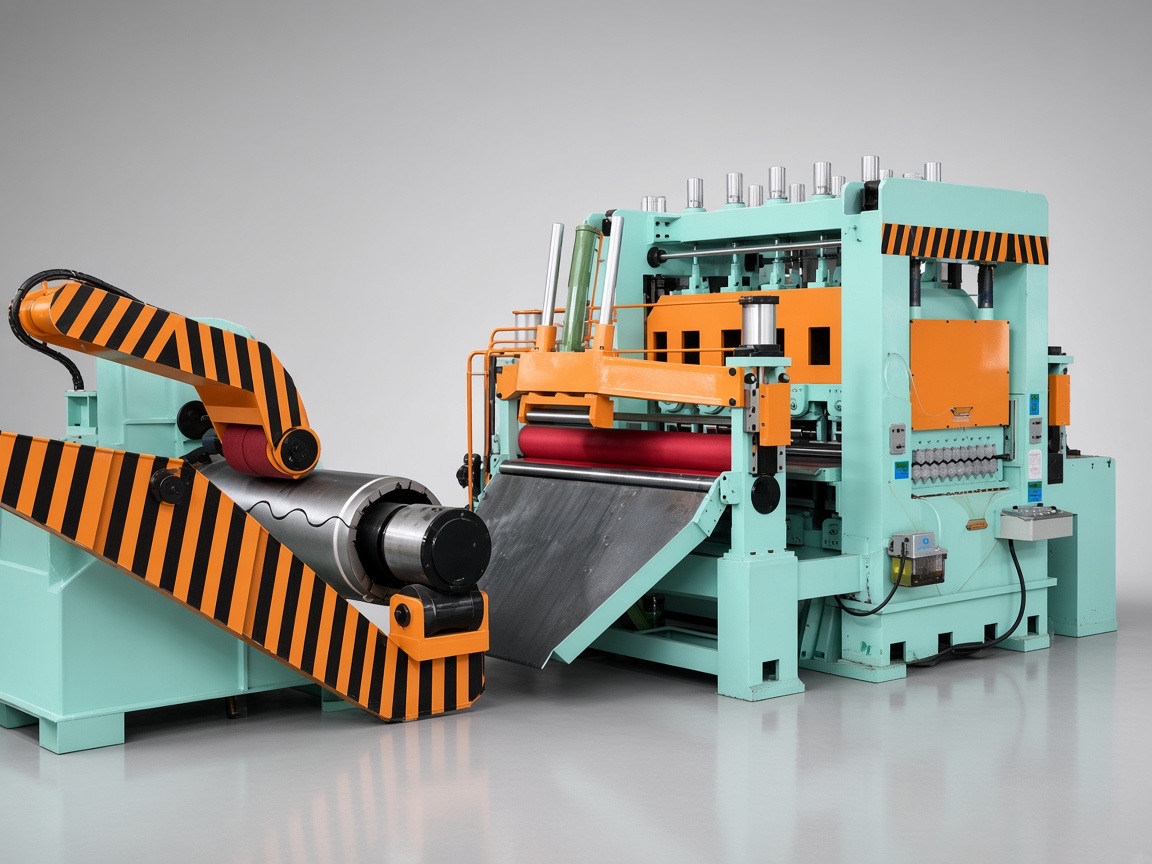

Combination lines
Strip and sheet from the same coil, on one line and one footprint.
1 line typeInside a slitting line
From decoiler to recoiler. Set the strip count and watch the knives and the recoiler follow.
Slit a 1,250 mm coil into strips
Each strip mm
- 01

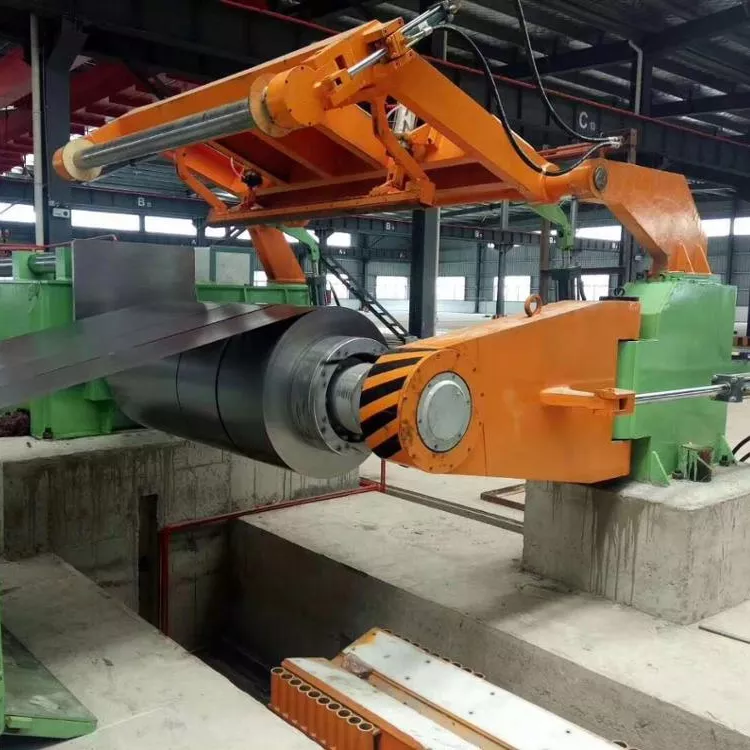

Decoiler
Holds the master coil and pays it off under control, with an expanding mandrel sized to your coil bore.
- 02
Pinch roll and leveler
Threads the strip head and takes out coil set, so the strip enters the knives flat.
- 03
Slitter

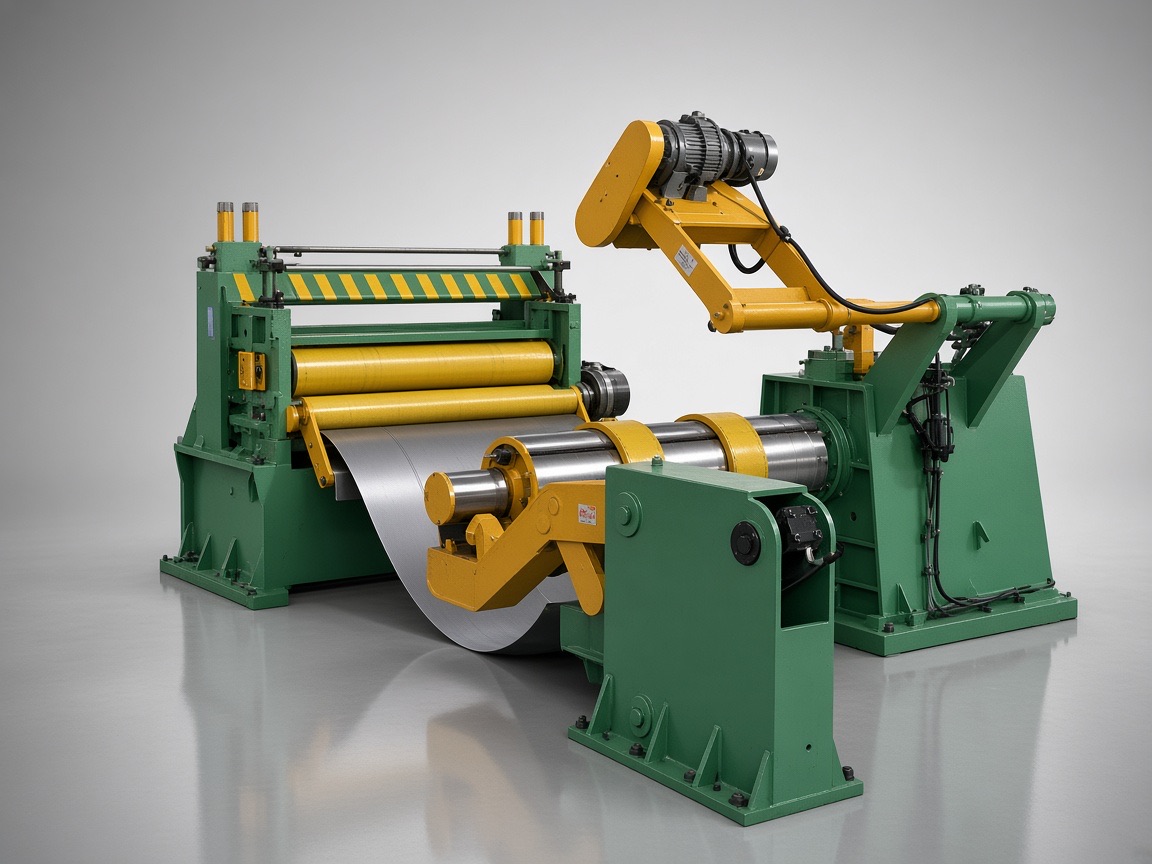

Rotary knives on two arbors cut the strip to width. On double-head machines the next knife set is prepared while the first one runs.
- 04
Scrap winder
Winds the trimmed edges away from the line so the operator never handles loose scrap.
- 05
Looping pit
Stores slack between slitter and recoiler, absorbing the small differences in strip length across the width.
- 06
Tension stand
Puts back tension on every strip so coils wind tight. Belt-type units protect galvanized and coated surfaces.
- 07

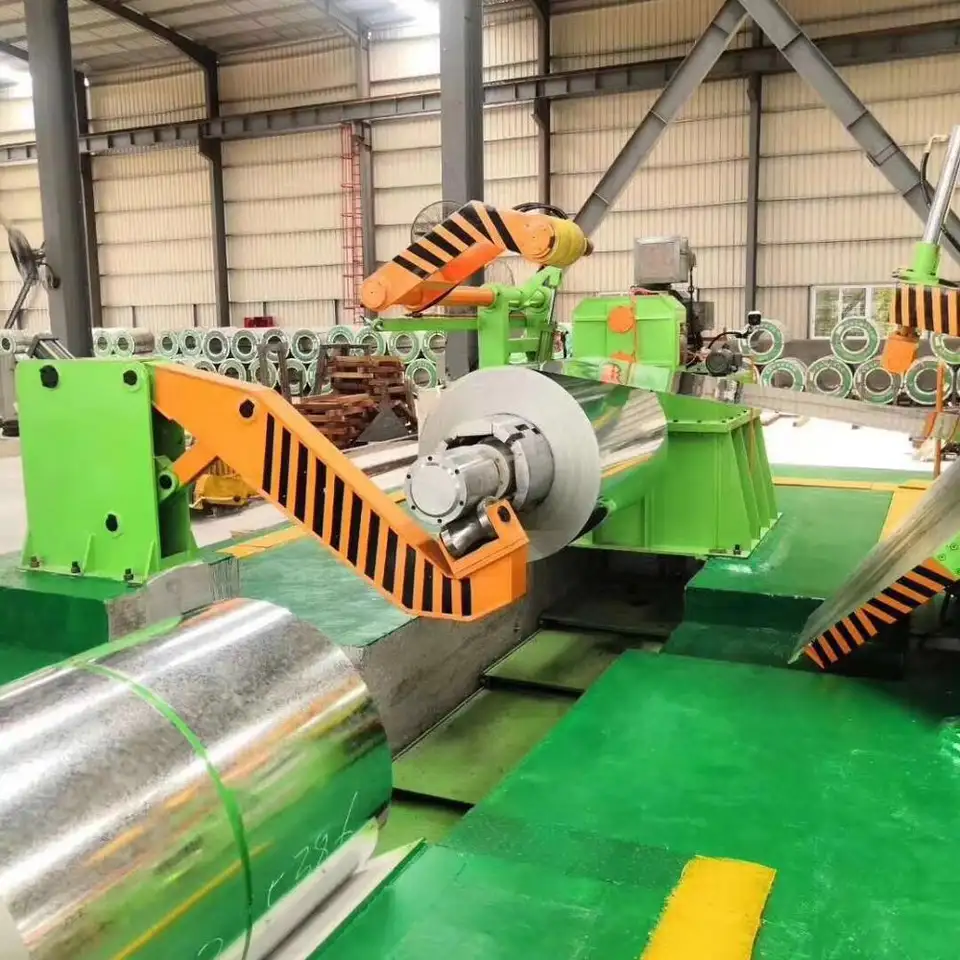

Recoiler
Winds the finished strips side by side, with separator discs keeping each coil straight-edged.
- 08
Shear and stacker
On cut-to-length lines a rotary or flying shear cuts sheets to length and a stacker builds the bundle.
- 09
Electrical control
PLC control with a touch-screen operator panel. Siemens or ABB components can be specified, and the line is wired for your local supply.
What your strip and sheet become
Slit strip and cut sheet feed almost every metal-forming industry. These are the plants our lines are built for.
Steel service centers
Slitting and cutting coil to order for many downstream customers.
Automotive parts
Strip and blanks for stamping brackets, reinforcements and structural parts.
Home appliances
Sheet and strip for appliance panels, housings and inner parts.
Construction and roofing
Coated and galvanized strip feeding roll formers for panels, purlins and profiles.
Tube and pipe
Precisely slit strip as the feed for welded tube mills.
Cabinets and enclosures
Flat, accurately cut sheet for electrical cabinets, racking and metal furniture.
Why plants choose Hongzhong
A factory that builds the whole line, and stays on the line with you.
Built around your coil
Every line is configured for your coil width, thickness range, coil weight and output, not sold off a fixed list.
Taiwan-derived slitter design

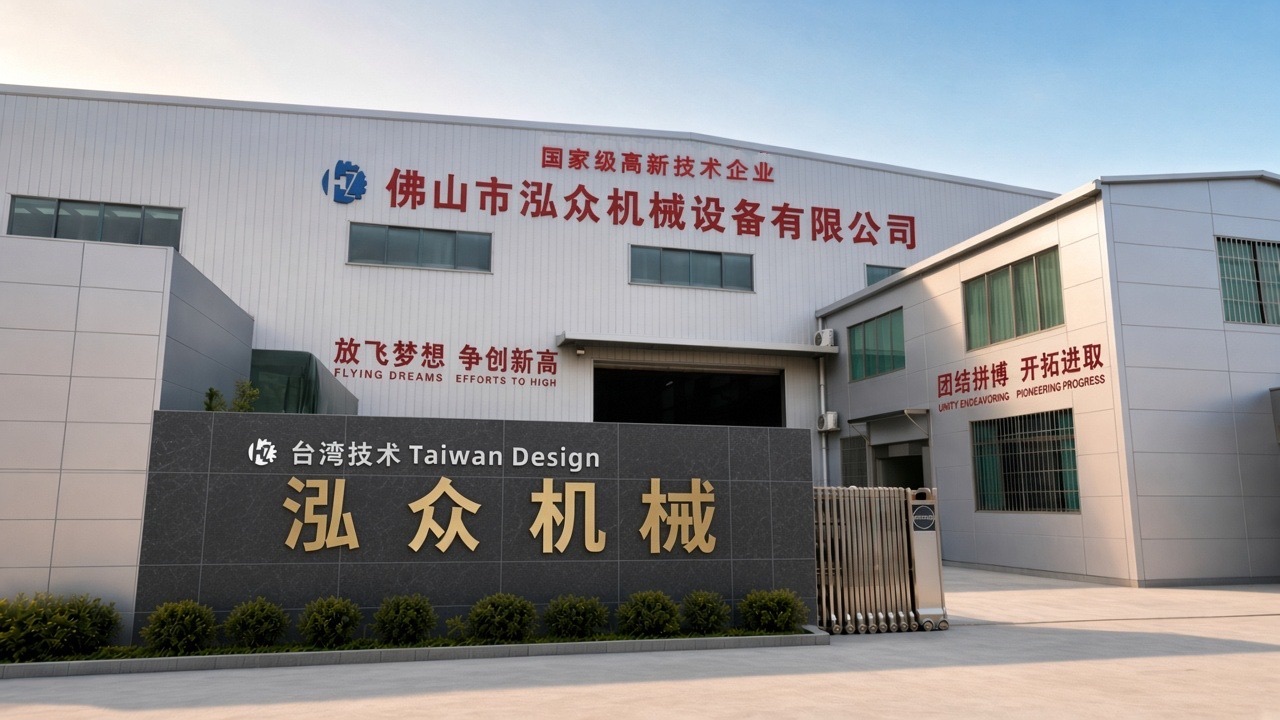

Our slitter heads follow a Taiwan design, built and assembled in our own Foshan factory.
Run before it ships
Every line is run in our factory before shipment. Watch the trial on a live video call.
Direct with the factory
You talk to the engineers and the people who build your line, from the first drawing to start-up.

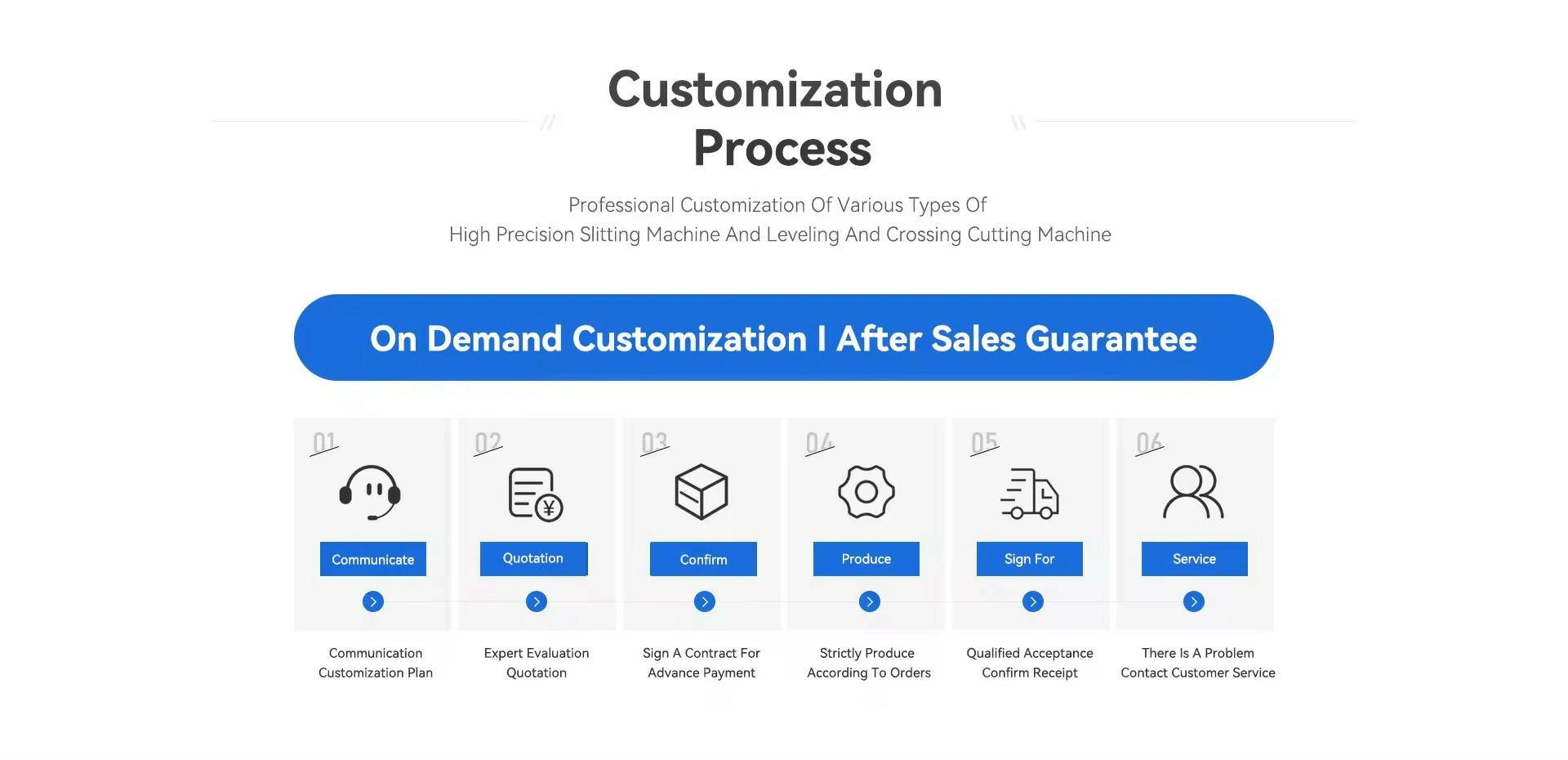

From brief to start-up
Lead time, payment and installation scope are agreed in the contract for each line.
- 01
Project brief
You send material grade, thickness, coil width and weight, finished size and output.
- 02
Technical proposal
We propose the line configuration, main components and a layout for your building.
- 03
Manufacturing

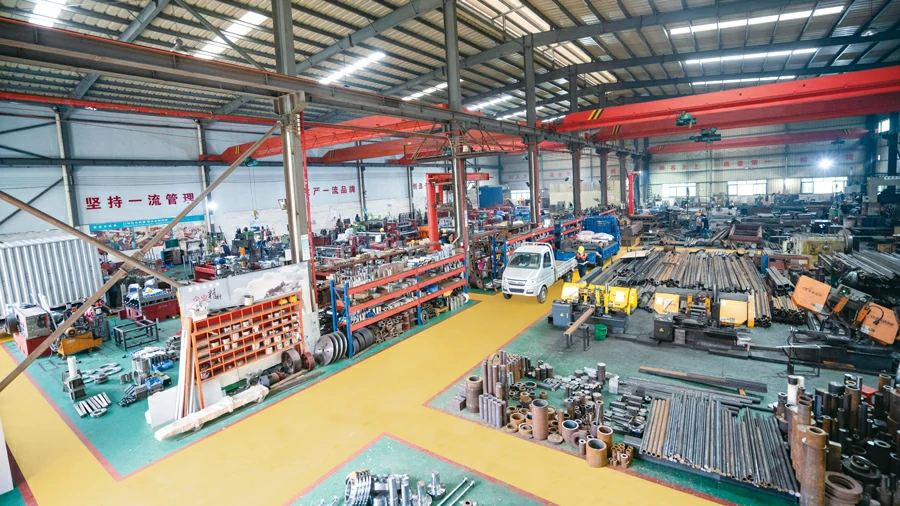

The line is built and assembled in our Foshan factory.
- 04
Factory trial
We run the line before shipment. Video inspection is available.
- 05
Delivery and start-up
Shipping, installation and commissioning support as agreed in the contract.
Questions buyers ask
Not answered here? Ask us on WhatsApp or by email.
What do you need from us for a quotation?
Material and grade, thickness range, coil width, weight and inner diameter, the finished strip widths or sheet sizes, and the output you need. A photo or drawing of your floor space helps with the layout.
Can the line run on our local power supply?
Yes. Voltage and frequency are configured to your supply when the line is built.
Can we see the line before it ships?
Yes. We run every line in our factory before shipment, and you can join the trial on a live video call or visit us in Foshan.
Do you install and commission the line?
Shipping, installation and commissioning support are agreed in the contract for each line.
Which materials can your lines process?
Stainless, carbon, hot-rolled and cold-rolled steel, galvanized and coated steel, aluminum and copper. Thickness ranges from 0.2 mm to 16 mm depending on the line.
Which control systems do you use?
PLC control with a touch-screen operator panel. Siemens or ABB components can be specified for your line.
Send us your coil. We will send you a line.
Material, thickness, coil width and weight, and the strip or sheet you need. That is enough to start.
